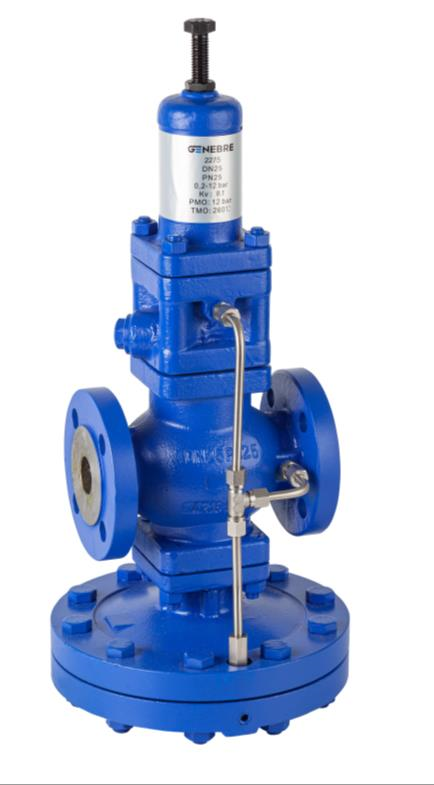

Genebre DN 25 Fig: 2275 Pilot operated Pressure Reducing Valve.
Flanged ends 1", DN25 according to EN 1092-1 PN25.Construction: Carbon steel 1.0619 (WCB). Maximum input pressure 25 bar. Outlet pressure from 0,5 to 12 bar. Maximum working temperature 260ºC. (Steam or compressed air applications)
Manufacturers Product Code:
2275
Brand Name:
Genebre
Catalog Product Description:
DN25, 1" Flanged - 0.5 to 12 Bar
Valve Size:
1" 25mm
Valve Material:
Carbon Steel
Valve Rating:
PN25
Barcode:
436500212
