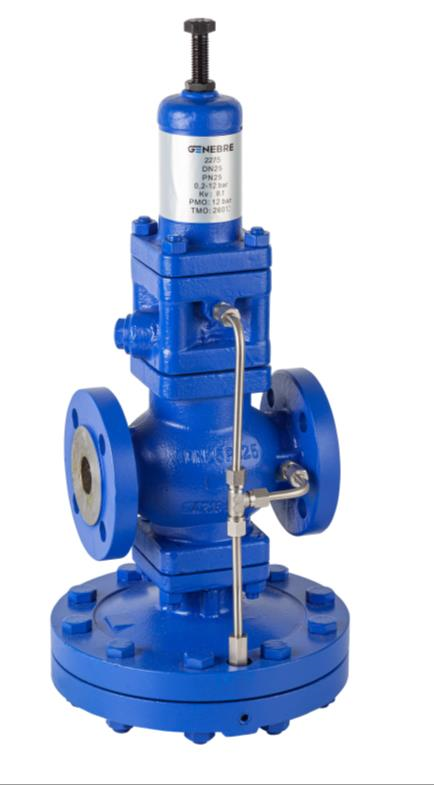

Genebre DN 15 Fig: 2275 Pilot operated Pressure Reducing Valve.
Flanged ends 1/2", DN15 according to EN 1092-1 PN25. Construction: Carbon steel 1.0619 (WCB). Maximum input pressure 25 bar. Outlet pressure from 0,5 to 12 bar. Maximum working temperature 260ºC. (Steam or compressed air applications)
Manufacturers Product Code:
2275
Brand Name:
Genebre
Catalog Product Description:
DN15, 1/2" Flanged - 0.5 to 12 Bar
Valve Size:
1/2" 15mm
Valve Material:
Carbon Steel
Valve Rating:
PN25
Barcode:
436500200
